In precision manufacturing, the choice between 3-axis, 4-axis, and 5-axis CNC milling directly impacts a part's manufacturability, precision, and cost. The core differences lie in the number of motion axes and degrees of freedom, which determine the types of geometric features that can be machined.

3-axis CNC milling is the most basic configuration, where the cutting tool moves along three linear axes: X, Y, and Z. It is suitable for machining flat surfaces, right-angled profiles, simple cavities, and holes. For most rectangular or plate-like parts, 3-axis milling is both efficient and cost-effective. However, its limitations are significant: only one side can be machined per setup. To machine side or back surfaces, the part must be manually re-clamped and the tool re-zeroed; this not only extends the production cycle but also increases the risk of cumulative positioning errors. Consequently, 3-axis milling is primarily used for general-purpose parts with moderate requirements for precision and complexity.

4-axis CNC milling builds upon the 3-axis setup by adding a rotary axis (usually rotating around the X-axis), allowing the workpiece to be rotated during machining. This enables the milling cutter to access multiple adjacent faces of the workpiece in a single setup, making it particularly well-suited for features of revolution such as cylinders, helical grooves, cams, and blades. Compared to 3-axis milling, the 4-axis method reduces the number of setups and improves positional accuracy, offering a cost-effective upgrade for parts requiring multi-sided machining.

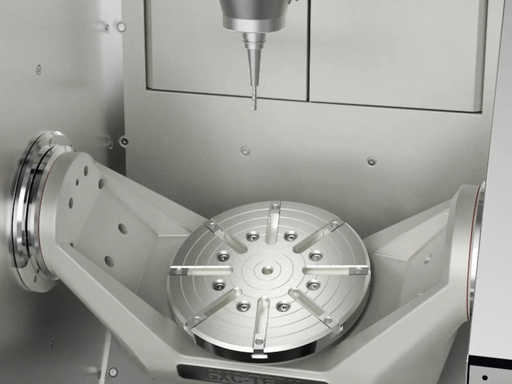

5-axis CNC milling represents the pinnacle of milling technology. By adding two rotary axes, it allows the tool to approach the workpiece from virtually any angle and complete milling operations on five faces within a single setup. Its key advantages include the elimination of errors caused by multiple setups—thereby greatly enhancing geometric precision—and the ability to machine deep cavities, undercuts, complex curved surfaces, and free-form shapes that are impossible to produce with 3-axis or 4-axis methods. Furthermore, because the tool can engage the workpiece at an optimal angle, cutting forces are more uniform, resulting in superior surface quality and extended tool life. For these reasons, 5-axis machining is widely used for components such as aero-engine impellers, medical bone plates, automotive molds, and precision optical parts. Although 5-axis machining entails higher programming complexity and equipment investment, the gains in efficiency and precision often far outweigh the additional costs when dealing with complex shapes and tight tolerances. How do you choose?

If your part features simple flat surfaces or shallow contours, 3-axis machining suffices; if it involves multiple planes or cylindrical features, 4-axis machining is a logical step up; however, when the part incorporates free-form surfaces or complex cavities, or requires milling on five sides, 5-axis machining is the only reliable choice. Understanding these distinctions allows you to strike the optimal balance between performance and budget based on the specific requirements of the part.
