In the process of customizing aluminum profiles, clients are typically most concerned with three key questions: Is the dimensional accuracy precise? Is the straightness satisfactory? And is the surface finish sufficiently refined? Many assume that the extrusion process itself is the decisive factor; however, the true "soul" of the profile lies hidden within the die. A well-crafted die ensures that, under conditions of high temperature and pressure, the aluminum billet behaves obediently, flowing precisely into every corner and contour depicted in your technical drawings. Conversely, a poorly designed die creates inherent precision defects that are nearly impossible to rectify later—no matter how much machine adjustment, straightening, or even precision machining is applied during subsequent stages.



As a manufacturer integrating aluminum profile die development, extrusion, CNC precision machining, and anodizing services, we deeply understand this fundamental truth: Die design is the mother of precision. From the perspective of actual production, this article deconstructs exactly how die design determines the final precision of an aluminum profile, and highlights the critical technical points you should prioritize during the die development phase.



I. Wall Thickness Precision: The "Centimeter-Scale" Balancing Act Between the Bearing and the Die Aperture

The wall thickness tolerance of an aluminum profile is the primary metric for the majority of clients. During the extrusion process, the aluminum alloy enters the welding chamber through the die's feeder holes before finally being extruded through the die aperture to take shape. While the dimensions and geometry of the die aperture directly define the theoretical profile outline, it is the design of the "bearing" (or land) that truly governs the stability of the wall thickness.



The Function of the Bearing: It acts as a "calibration sleeve." After passing through the opening of the die aperture, the aluminum material must travel a certain distance—frictionally engaging with the bearing surface—before finally emerging as the finished profile. The length, angle, and surface finish of the bearing collectively determine the uniformity of the metal's exit velocity.



The Precision Challenge: If the profile cross-section is complex—for instance, featuring one thick side and one thin side—the thin-walled sections tend to dissipate heat rapidly and encounter higher flow resistance, causing the metal flow to slow down. Conversely, the thick-walled sections contain a greater volume of metal and exhibit a faster flow rate, which can lead to surface waviness or oversized dimensions. An exceptional die design addresses this challenge by employing bearings of varying lengths to balance the flow velocity: the bearing is lengthened in areas where the flow is naturally faster to increase friction and slow the metal down, while it is shortened in areas where the flow is naturally slower to reduce resistance, thereby ensuring that the entire cross-section is extruded uniformly.



What level of actual tolerance is achievable? Through a combination of sound die design and the use of 700–3600-ton extrusion presses, we are able to control the wall thickness tolerance of standard profiles to within ±0.1 mm, with precision grades reaching as tight as ±0.05 mm. Conversely, if the die bearing design is inadequate, wall thickness fluctuations exceeding 0.3 mm may occur within a single profile.



II. Geometric and Positional Accuracy: Straightness, Twist, and Flatness

Geometric and positional tolerances are often the most contentious points during product acceptance inspections. If a profile appears visibly bent or twisted—resembling a twisted rope—the issue typically stems from flaws in two specific details of the die design:

Asymmetrical Distribution Port Layout: The position and surface area of ​​the distribution ports determine the uniformity of the metal flow. If the profile's cross-section is asymmetrical, yet the distribution ports are cut symmetrically, it results in an uneven distribution of metal—one side receiving an excess while the other receives a deficit. Consequently, the profile will naturally curve toward the side with the lower metal volume upon exiting the die. Effective die design utilizes Finite Element Analysis (FEA) simulations or empirical formulas to ensure that the metal supply to every point of the cross-section is directly proportional to the local cross-sectional perimeter.

Improper Die Bearing Relief and Welding Chamber Geometry: The depth and geometry of the welding chamber influence the pressure distribution during the re-welding of the metal streams. If the welding chamber is too shallow or structurally unsound, the profile becomes prone to weld line defects; furthermore, this leads to uneven residual stress distribution after extrusion, resulting in spring-back deformation during subsequent straightening operations.

By optimizing our die designs, we can maintain the straightness of 6-meter-long profiles within 0.3 mm/m and limit twist to no more than 1.5 mm/m (in accordance with the GB/T 5237 standard). For clients requiring subsequent CNC precision machining, this significantly reduces the complexity and difficulty associated with workpiece fixturing and alignment.



III. Surface Accuracy: Roughness, Scratches, and Embedded Particles

Have you ever encountered extruded profiles featuring prominent longitudinal scratches or rough, embedded particles on their surface? The root cause of such issues typically lies in the condition of the die bearing (land) and the surface finish of the die orifice.

Die Bearing Surface Finish: If the die bearing surface is roughly machined or becomes worn during operation, it acts like sandpaper against the aluminum material, abrading the surface and creating continuous, longitudinal striations along the entire length of the profile. We employ a combination of wire-cut EDM and mirror-polishing processes to achieve a working-land surface roughness of Ra ≤ 0.2 μm. This ensures that the extruded profiles can proceed directly to anodizing without the need for extensive sanding.

Die Orifice Corner Transitions: Sharp right angles lead to stress concentration and tend to trap aluminum chips, resulting in surface scratches. Superior designs incorporate appropriately rounded internal corners (fillets/R-radii); this not only facilitates smooth metal flow but also minimizes surface defects.

Hardness and Wear Resistance: Die materials typically consist of H13 steel, which achieves a hardness of 48–52 HRC following vacuum quenching. A well-designed die—coupled with precise heat treatment—can maintain its dimensional stability even after extruding thousands of kilograms of aluminum billets, ensuring that precision does not degrade due to wear.



IV. Geometric Complexity: The Key to Producing "Irregular" Shapes

Many clients ask: "Can you produce a profile with a cross-section that features serrations, internal cavities, or even a hollow core?" The answer depends entirely on the design expertise applied to the "porthole die" (split die) structure.

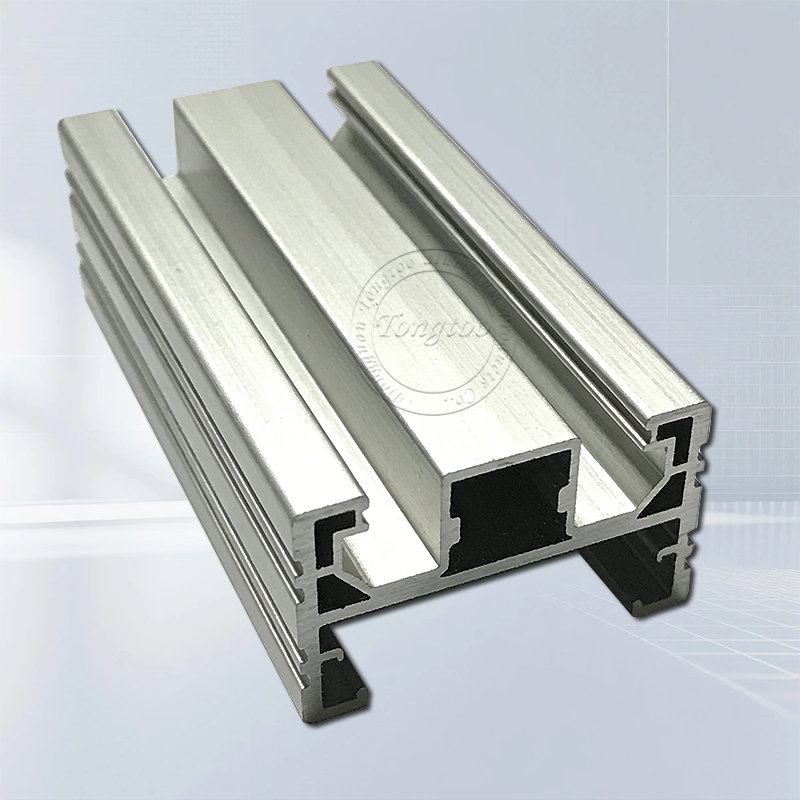

Hollow Profiles: These require a "flow bridge + mandrel" structure. The aluminum material is first divided into multiple streams beneath the flow bridge; after flowing around the mandrels, the streams re-weld within a "welding chamber." Finally, the material is extruded through the gap between the mandrels and the die orifice to form the hollow cavity. The die design must ensure sufficient welding pressure; otherwise, weld-line cracking may occur. Our die engineers specialize in designing multi-cavity, thin-walled hollow profiles, capable of achieving minimum wall thicknesses as fine as 0.6 mm.

Semi-Closed & Complex Cantilever Structures: For profiles featuring tall, dense fins—such as those found in heat sinks (with an aspect ratio of 1:10 or greater)—the die design must prioritize the structural support of the working lands and the strength of the die orifice. Failure to do so will result in the fins tilting or collapsing during the extrusion process. By incorporating stepped working lands and reinforcing ribs into our designs, we have successfully customized high-density heat-dissipation profiles for numerous clients in the LED lighting and new energy battery pack sectors.



V. From Die to Finished Product: Upstream Control of the Precision Chain

As a one-stop manufacturing provider, we offer capabilities extending beyond die design and profile extrusion; we also perform "reverse verification" of die precision during the subsequent CNC machining and anodizing stages. Case Study 1: An automation equipment client required a guide rail profile featuring a precision T-slot, with a strict tolerance requirement of ±0.05 mm at the slot base. After the initial mold trial, CNC inspection revealed a slot position deviation of 0.12 mm. We immediately modified the mold's bearing surfaces and corrected the die aperture coordinates. Following the second trial, the profile met the tolerance requirements directly, eliminating the need for an additional milling operation and saving the client 12 RMB in processing costs per meter.

Case Study 2: A heat sink client discovered that the tips of the fins appeared whitish after anodizing. Initially, they suspected an issue with the anodizing bath solution; however, troubleshooting revealed that uneven cooling of the mold's bearing surfaces had caused localized grain coarsening in the extruded profile. We optimized the length of the bearing surfaces and incorporated liquid nitrogen cooling channels into the mold design, ultimately achieving a consistent and uniform anodized finish.

These case studies demonstrate that mold design not only dictates extrusion precision but also directly impacts the costs and yield rates of subsequent downstream processes.



VI: Recommendations for Clients—How to Save Time and Money During the Mold Development Phase

Given the critical importance of mold design, you can take the following steps before commissioning a mold to help us work together to achieve higher precision:

Provide Complete Cross-Sectional Drawings: Clearly indicate critical tolerance dimensions, the direction of applied force/load, and the minimum allowable fillet radii (R-angles).

Specify Subsequent Processing Requirements: Will the profile require CNC machining, anodizing, wire drawing, or sandblasting? Different downstream processes impose varying precision requirements on the extruded raw profile (for example, sandblasting can mask minor surface scratches, whereas anodizing is highly sensitive to surface roughness).

Estimate Annual Usage Volume: For long-term, high-volume orders, we can design more wear-resistant, high-precision molds (e.g., incorporating hardened coatings or steel inserts); for small-batch rapid prototyping, we can opt for expedited mold solutions to minimize initial tooling costs.

Conclusion: The Mold—The First Gatekeeper of Aluminum Profile Precision. From wall thickness tolerances to straightness, from surface quality to the ability to produce complex geometries, every aspect of precision is defined and constrained by the design of the mold. A high-quality mold represents the culmination of technical expertise and accumulated experience. Only an aluminum extrusion facility capable of independently designing, manufacturing, and repairing its own molds can truly control precision at the source—thereby offering you a comprehensive, one-stop service ranging from mold creation and extrusion to CNC machining and anodizing—while sparing you the hassle of inter-vendor disputes caused by mold-related issues.



If you are currently grappling with precision challenges regarding custom-profile aluminum extrusions, or if you are planning to develop new aluminum products, we invite you to reach out to us with your cross-section sketches or design concepts. Our very first step will be to help you "engineer" that precision directly into the mold itself.
