In modern manufacturing, CNC machining and 3D printing are two core digital manufacturing technologies, both capable of transforming design models into physical parts through computer programs. However, there are fundamental differences in their processing logic, performance, and applicable scenarios.  Choosing between them requires careful consideration of production needs. The following details the differences between the two technologies across five core dimensions.

I. Core Principle: Subtractive Manufacturing vs. Additive Manufacturing

This is the most fundamental difference between the two, directly determining all subsequent performance differences.

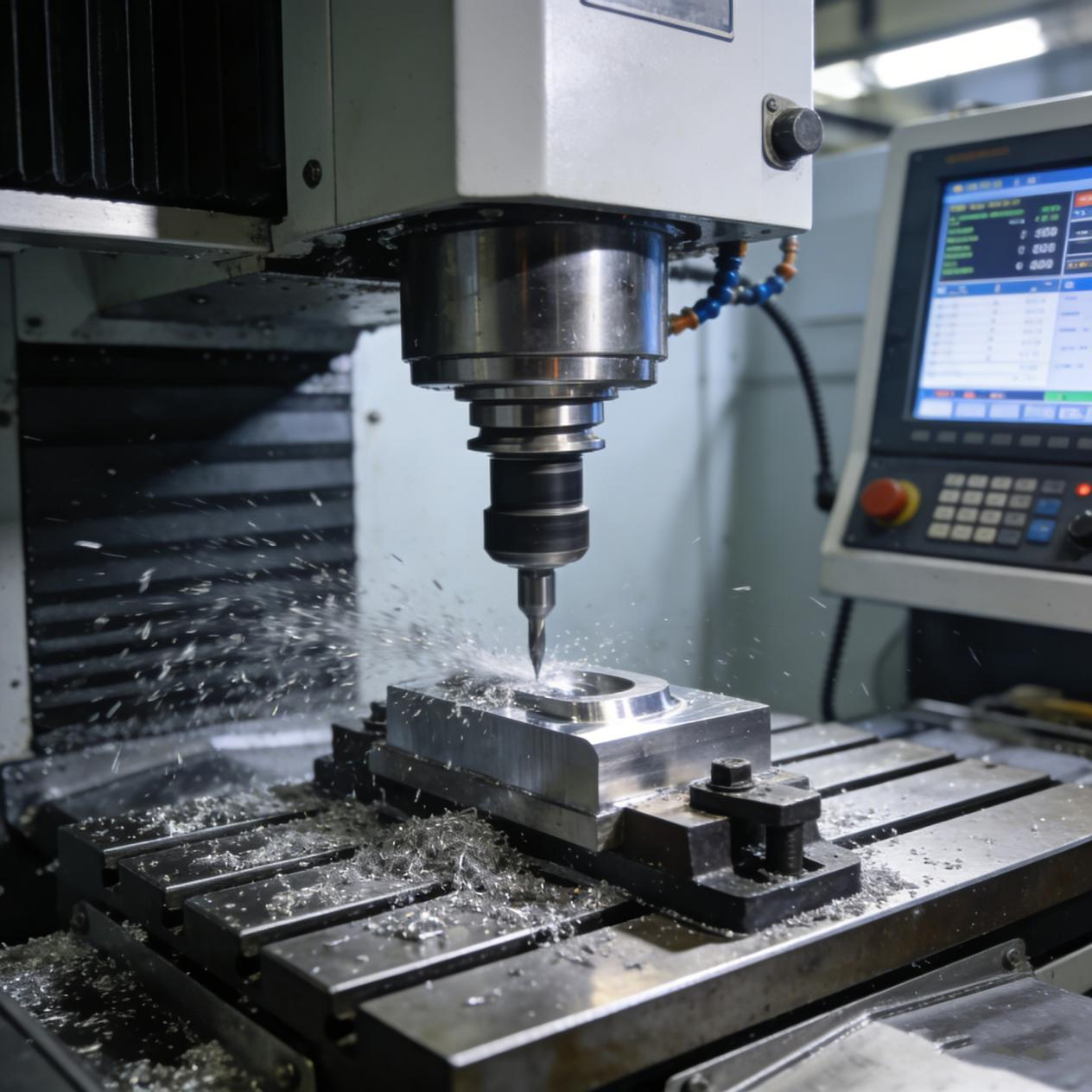

CNC machining belongs to "subtractive manufacturing," using a solid block of material (metal block, plastic sheet, wood, etc.) as the processing base.  Computer-controlled tools (milling cutters, drills, turning tools, etc.) are used to perform cutting, drilling, boring, and other operations, gradually removing excess material to form the target shape. The machining process relies on tool path planning, requiring prior simulation of the tool's movement trajectory to avoid interference, and is suitable for regular geometric shapes and complex surface machining.

3D printing belongs to "additive manufacturing," following the "layer-by-layer stacking" principle. Whether it's fused deposition modeling (FDM), selective laser sintering (SLS), or stereolithography (SLA), it builds parts from scratch by layering materials (resins, metal powders, plastic filaments, etc.), with each layer's thickness precisely controlled at the micron level. This method does not require tools and can overcome the structural limitations of traditional machining, easily achieving special designs such as internal hollowing and complex lattices.

II. Material Compatibility: Range and Performance Differences

The material compatibility of the two differs significantly, directly affecting the mechanical properties and application scenarios of the parts.

CNC machining has an extremely wide range of materials, including metals (aluminum, steel, titanium alloys, copper, etc.), engineering plastics (ABS, nylon, POM), wood, composite materials, and even stone. Especially in the field of metal processing, CNC can adapt to high-strength, high-hardness materials, and the density of the processed parts is consistent with the raw materials, resulting in stable mechanical properties – for example, Dongguan Tengtu Aluminum Products Co., Ltd., which specializes in CNC machining of aluminum products, can precisely control the strength and toughness of aluminum alloys to meet industrial-grade requirements. 3D printing materials primarily consist of specialized consumables, with different types adapted to different processes: FDM mostly uses PLA and ABS plastic filaments, SLA relies on photosensitive resins, and metal 3D printing requires specific metal powders (such as titanium powder and aluminum alloy powder). Although the variety of materials is expanding year by year, the range of options is still narrower than that of CNC machining, and the cost of metal 3D printing consumables is high, making it only suitable for high-end customized applications; plastic printed parts have weaker mechanical properties and cannot withstand high-intensity loads.

III. Accuracy and Surface Quality: Controllability and Process Limitations

Accuracy and surface quality are core requirements for industrial parts, and there are significant differences between the two in this dimension.

CNC machining offers extremely high accuracy, relying on precision machine tools and tool control. Tolerance levels can reach IT5-IT8, and the minimum surface roughness Ra value can be as low as 0.1μm. Some ultra-precision machining can even achieve nanometer-level accuracy. The surface of the machined parts is smooth and can be directly assembled and used without complex post-processing, making it especially suitable for metal parts requiring high fitting accuracy, such as automobile engine cylinder blocks and aerospace components.

3D printing accuracy is limited by the process and layer thickness. The tolerance of conventional FDM processes is around ±0.1mm, and SLA accuracy can be improved to ±0.05mm, but it is still not as good as CNC. Due to the layer-by-layer stacking characteristics, the surface of the parts is prone to layer lines, requiring post-processing such as grinding, polishing, and curing to improve the texture; metal 3D printed parts may also have internal pores, affecting structural stability, and require additional hot isostatic pressing treatment.

IV. Efficiency and Cost: The Trade-off Between Batch Size and Complexity

The difference in efficiency and cost depends on the production batch size, part complexity, and initial investment. Each has its advantages in different scenarios.

The cost and efficiency of CNC machining are positively correlated with batch size: for small-batch production, investment in tools, fixtures, and programming time is required, resulting in higher unit costs; however, when the batch size reaches hundreds of pieces or more, the fixed costs are spread out, and the efficiency advantage becomes apparent—especially for simple structural parts, CNC can quickly cut and form them, far exceeding the speed of 3D printing. In addition, although the material utilization rate of CNC machining is lower than that of 3D printing (due to cutting waste), the metal waste can be recycled and reused, reducing overall costs. 3D printing is more suitable for small-batch, complex part production: it requires no tools or fixtures, programming is simple, and the cost is lower for small batches of 1-10 pieces.  For example, in the case of Mitsubishi Chemical's sorting wheel, the cost of 3D printing small batches of parts was significantly lower than CNC machining. However, as the batch size increases, the printing time increases linearly with the number of parts, significantly reducing efficiency; and the high price of specialized consumables further increases the cost of mass production. At the same time, 3D printing supports simultaneous processing of multiple parts; as long as it does not exceed the printing range, multiple different parts can be produced at once, improving the flexibility of small-batch production.

V. Applicable Scenarios: Functional Requirements Determine Process Selection

Based on the above differences, the application scenarios of the two technologies form a clear division of labor, and some scenarios can be used complementarily.

CNC machining is suitable for: ① Mass production of precision metal parts (such as aluminum products and stainless steel components); ② Industrial components requiring high strength, precision, and surface quality (such as medical devices and automotive parts); ③ Machining of simple to moderately complex structural parts. For companies like Dongguan Tengtu Aluminum Products Co., Ltd., CNC machining is the core process for meeting customers' industrial-grade aluminum product batch requirements and ensuring product precision.

3D printing is suitable for: ① Prototyping during the product development stage (rapid design iteration, reducing modification costs); ② Complex structural parts (such as internal lattices, hollow shapes, and irregularly shaped parts); ③ Small-batch customized production (such as personalized medical devices and cultural and creative products); ④ Undercut and deep cavity structural parts that are difficult to process with CNC machining.

Summary: Complementary, not opposing, manufacturing solutions

CNC machining and 3D printing are not in a competitive relationship, but rather complementary technologies that adapt to different needs—CNC machining focuses on "high precision, large batches, and metal compatibility," supporting industrial-scale production; 3D printing is characterized by "high flexibility, complex structures, and small batches," empowering R&D innovation and customized needs. In actual production, some companies use a "3D printing prototype + CNC mass production" model, balancing R&D efficiency and production quality. The choice should be based on a comprehensive assessment of part materials, precision requirements, production batch size, and cost budget to maximize the value of the process.
