When performing CNC machining on aluminum profiles, one inevitably encounters recurring issues on a daily basis. No matter how flawless the technical drawings may appear, problems often surface the moment the workpiece hits the machine tool. Drill runout (misalignment), stripped threads, and inconsistent chamfer sizes—these three issues are familiar to almost every machining workshop. While they may not seem like major catastrophes in isolation, having even a few such defects in a production batch creates a dilemma: rework is a hassle, yet scrapping the parts is a painful waste. Below, we discuss how to diagnose the root causes and implement solutions in a real-world production environment.

Drill Runout: It’s Often Not the Drill Bit’s Fault

When drill runout occurs, an operator's first reaction is often to blame the "poor quality" of the drill bit. In reality, however, the issue in most cases lies not with the drill bit itself, but rather with the positioning and guidance mechanisms.

Aluminum profiles typically feature a surface oxide layer that is significantly harder than the underlying aluminum substrate. If a standard twist drill is applied directly, the drill tip is prone to slipping the moment it makes contact with the surface—a risk that is particularly high when drilling into angled planes or curved surfaces, where the probability of misalignment is substantial. The solution is simple: first, use a center drill to create a pilot dimple (a depth of 0.5 to 1 mm is sufficient) to provide a stable starting point for the subsequent drilling operation. Ideally, the point angle of the center drill should be 90° or 120°—slightly sharper than the standard 118° angle of a regular twist drill—to ensure superior guidance.

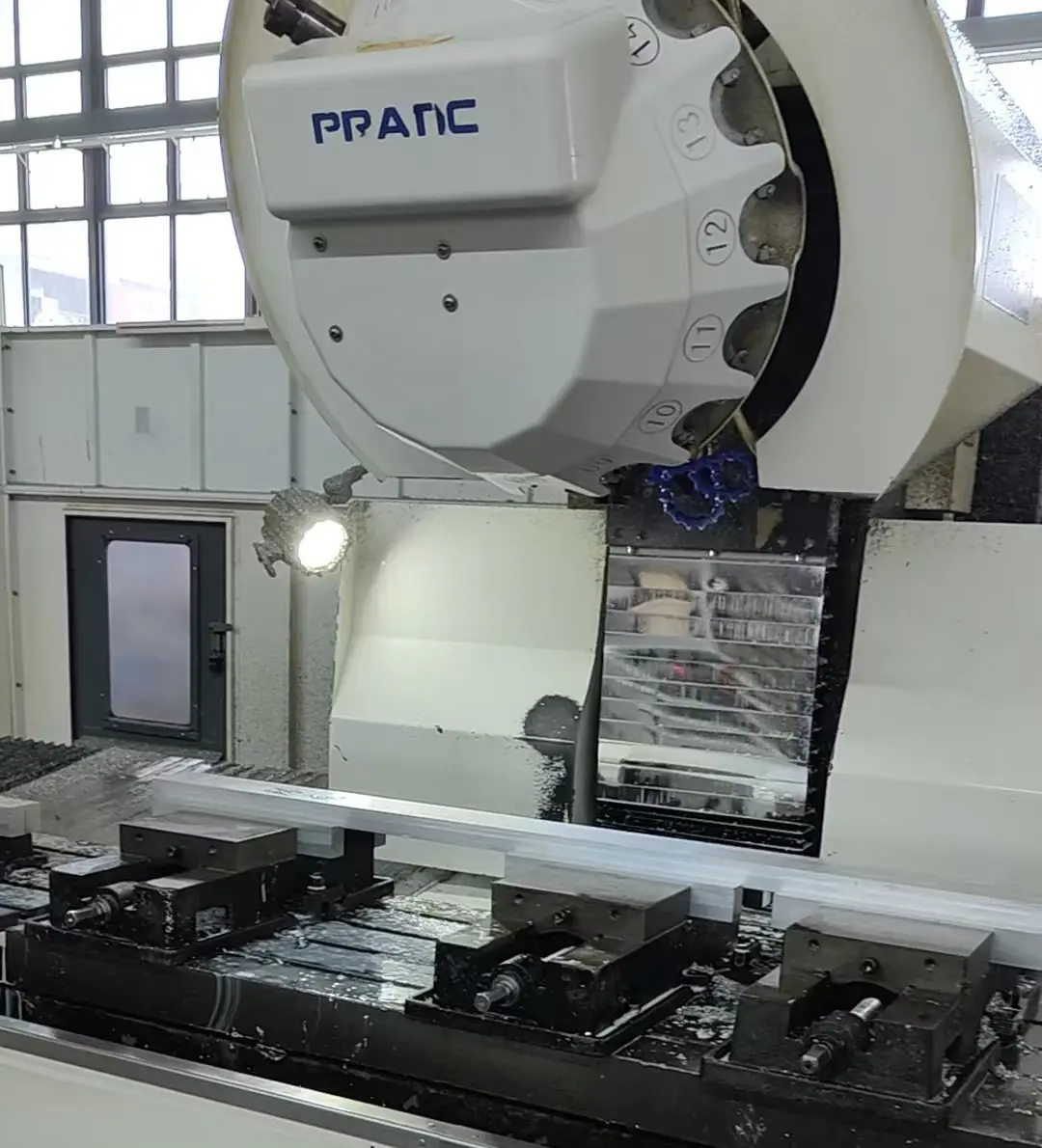

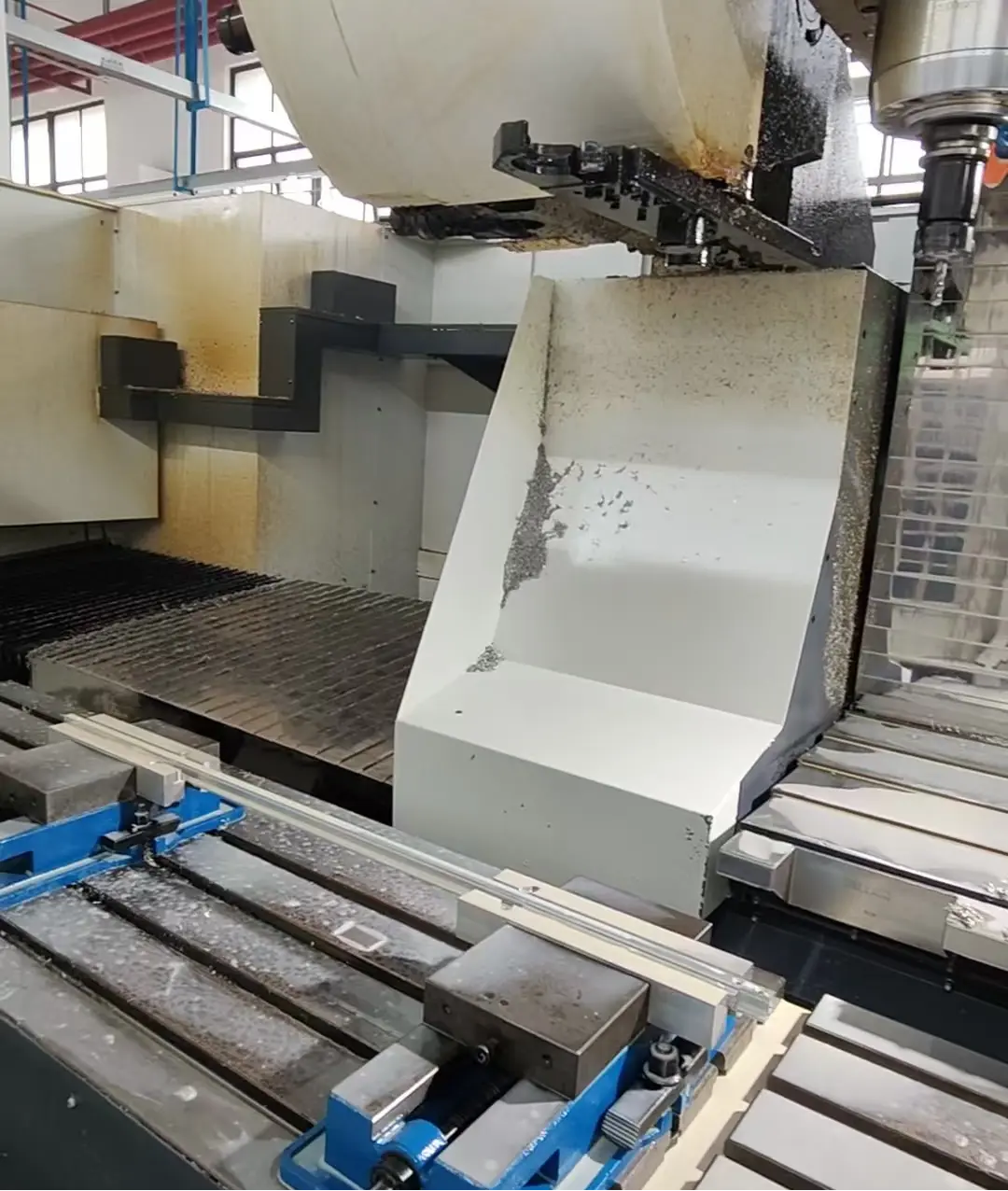

Another frequently overlooked cause is insecure workpiece clamping. Aluminum profiles often have thin walls; if the clamping force is too weak, the workpiece will vibrate, yet if the clamping force is too strong, it becomes susceptible to deformation. During the drilling process, even a minuscule shift in the workpiece's position will inevitably result in a misaligned hole. Inspect the contact surfaces of the fixture to ensure no aluminum chips or debris are lodged underneath. Many instances of misaligned holes are caused by a single aluminum chip no larger than a sesame seed. Taking five seconds to blow the fixture clean with an air gun before each clamping operation can save you a great deal of trouble down the line.

One final point: asymmetrical drill bit grinding. If the cutting edges differ in length by more than 0.1 mm, the resulting hole will be misaligned. Use a tool presetter or a magnifying glass to inspect the bit; if a significant asymmetry is evident, either replace the drill bit or regrind it. For drilling aluminum profiles, it is generally not advisable to use manually ground drill bits; instead, opt for machine-ground or coated drill bits, which offer superior symmetry. Stripped Threads: Not Always a Tapping Tool Issue

When tapping threads into aluminum profiles, issues such as stripped threads, damaged threads, or even broken taps lodged inside the workpiece are common occurrences. Many people, upon encountering a stripped thread, immediately blame the tap for poor quality; however, more often than not, the root cause lies in the incorrect selection of the pilot hole diameter.

Aluminum is a relatively soft material, and the tapping process induces a certain degree of "expansion" within it. If one applies the standard pilot hole diameters designed for steel components to aluminum workpieces, the resulting thread profile will be too shallow; consequently, a nut screwed onto such a thread will strip after just a few turns. For aluminum profiles, the pilot hole diameter should be increased by 0.05 to 0.1 millimeters beyond the standard specification. For instance, for an M4 thread—which typically calls for a standard pilot hole of 3.3 mm—the hole in an aluminum workpiece could be sized at 3.38 mm or 3.4 mm. Threads produced using this method possess sufficient depth, turn smoothly, and are far less prone to stripping.

Furthermore, tapping speed and lubrication are critical factors. Some operators, in an effort to save time, set the spindle speed as high as 700 or 800 RPM; the moment the tap plunges into the hole—often accompanied by a sharp *snap*—the threads are ruined. Generally, the tapping speed for aluminum workpieces should be controlled within a range of 200 to 400 RPM, with larger-diameter threads requiring even lower speeds. Regarding lubrication, standard cutting fluids are unsuitable; it is best to use specialized tapping oil or tapping paste (such as lard-based compounds) to prevent aluminum chips from adhering to the tap.

One additional detail to consider involves tapping blind holes: aluminum chips generated at the bottom of the hole can become trapped, pushing the tap off-center and causing deformation in the final few threads. When programming the machining process, it is advisable to incorporate a "chip-breaking" routine—retracting the tap by half a turn after every two or three full rotations—to sever the chips and allow them to evacuate. If tapping manually, one must similarly reverse the tap frequently to clear the chips.

Uneven Chamfers: Often a Tool or Toolpath Issue

While uneven chamfers may appear to be a minor flaw, they are often the detail that customers scrutinize most closely. Whether the chamfer is larger on one side than the other, or the chamfered surface exhibits visible chatter marks, the entire workpiece takes on a distinctly unrefined and amateurish appearance.

The most common cause of uneven chamfers is the inherent unevenness of the workpiece surface itself. Since aluminum profiles undergo extrusion and straightening processes, these long, linear components often retain some degree of curvature or twisting. If the workpiece is flattened during clamping, it will spring back to its original shape once released after machining; consequently, the chamfered edge will inevitably become distorted. The solution is to perform the chamfering in two stages: after rough machining, first release the fixture to allow the workpiece to freely relieve internal stresses, then re-clamp it gently before performing the finish chamfering. Although this adds an extra step to the process, the improvement in results is significant, particularly for long, slender profiles.

Another contributing factor is incorrect cutting parameters for the chamfering tool. When chamfering aluminum parts, single-flute or three-flute chamfering cutters are typically used, and the spindle speed should not be set too low. Some machinists are accustomed to using speeds of only 1,000 to 2,000 RPM, which often results in chamfers that appear whitish and exhibit burrs. In practice, the spindle speed can be increased to between 8,000 and 10,000 RPM, while the feed rate is slowed down to 0.03–0.05 mm per revolution, with cutting fluid directed specifically at the tool tip. This approach produces a chamfered surface that is bright, smooth, and dimensionally consistent.

Tool wear is another factor that cannot be overlooked. The cutting tip of a chamfering tool is quite delicate; after machining several hundred aluminum parts, the radius of the tool tip will increase, causing the actual chamfer width to begin shrinking. It is advisable to inspect the tool tip regularly or establish a fixed tool-replacement schedule—for instance, replacing the tool after every 200 parts machined.

Finally, there is one easily overlooked detail: whether the program's toolpath initiates from outside the workpiece. If the chamfering tool plunges directly into the surface of the workpiece, the chamfer at the entry point will be noticeably wider than the rest of the edge. The correct procedure involves using a helical entry path or approaching the workpiece from the outside to ensure a uniform chamfer profile along the entire trajectory.

Summary

Drill-hole runout, stripped threads, and uneven chamfers—none of these three issues constitute a "stubborn, intractable problem" in the context of CNC machining for aluminum profiles. In most cases, these issues arise simply because one or two of the three critical elements—workholding, tooling, and cutting parameters—have not been executed properly. Taking a few extra moments to observe your work and taking a couple of preventive steps during your daily routine is far less troublesome than having to rework parts after a problem has already occurred.

As the veteran machinists in the workshop often say: "Machining aluminum is seven parts preparation and three parts execution." A quick check of the pilot hole, a blast of compressed air to clean the fixture, and a visual inspection of the tool tip—these simple steps can prevent many common defects from ever arising in the first place.
