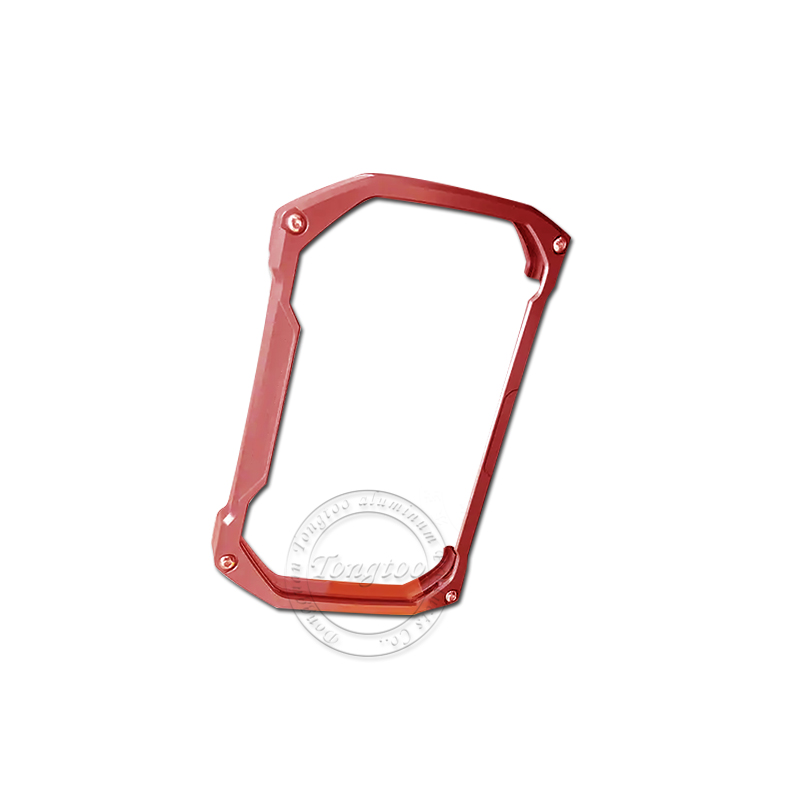

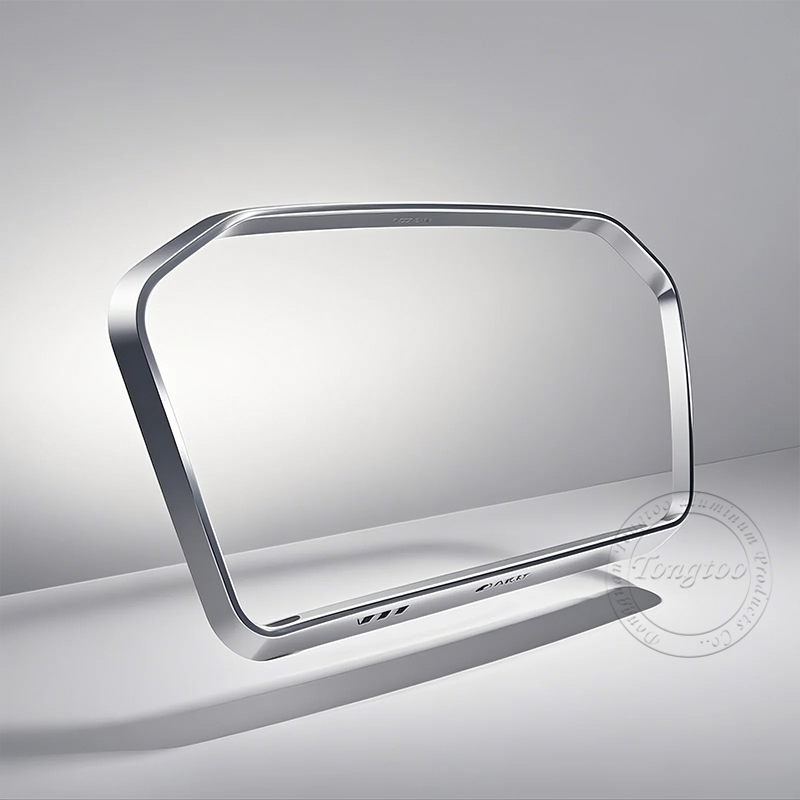

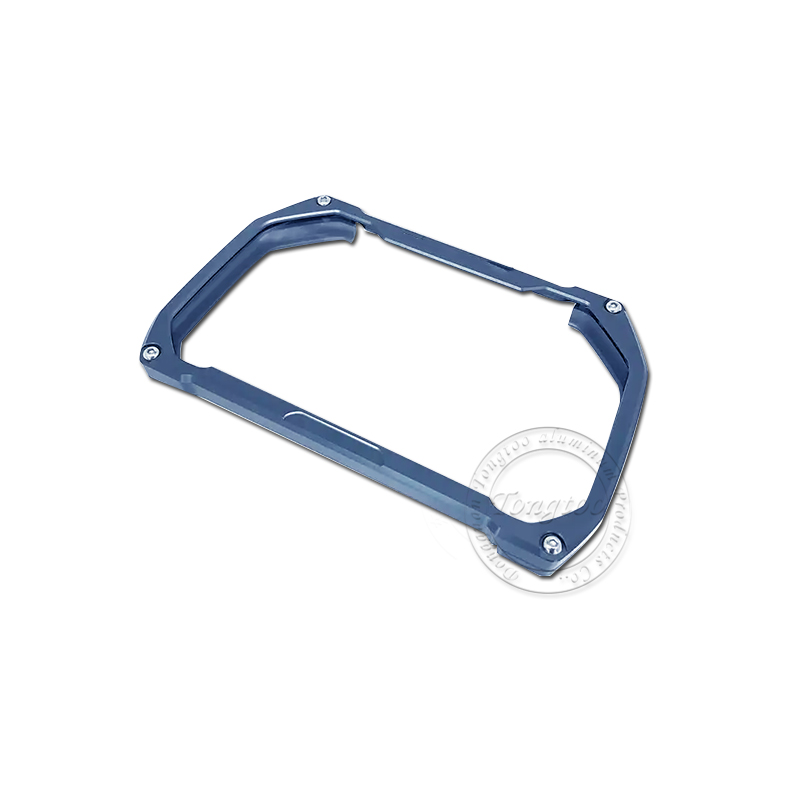

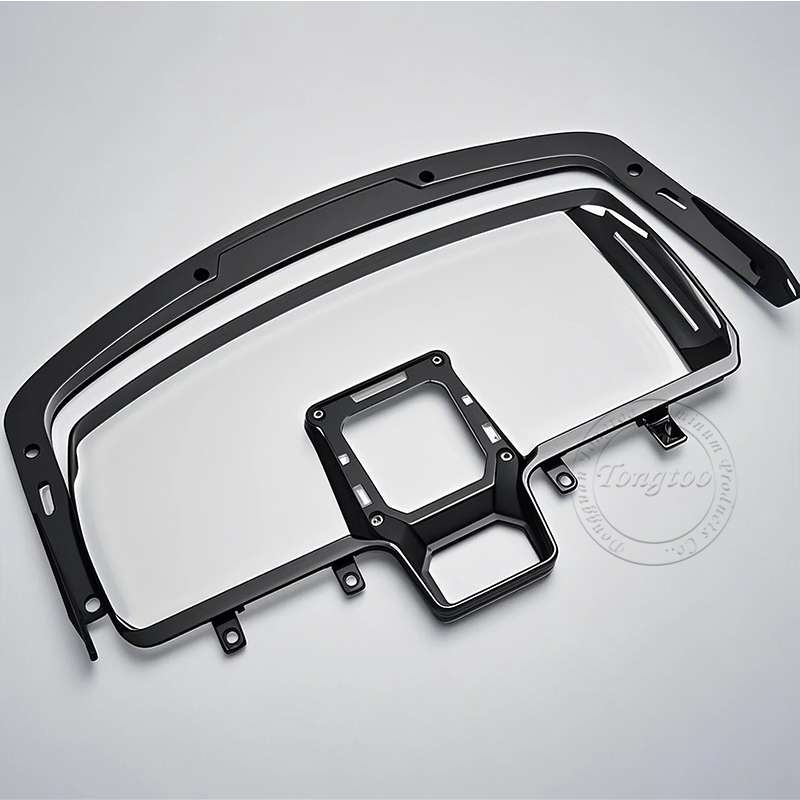

High Quality Aluminum Alloy Dashboard Frame
With advanced four-axis and five-axis CNC equipment, mature surface treatment technology and strict quality management system, our products are widely used in the fields of automobiles, aerospace, industrial equipment and smart homes, meeting customers' diverse needs for lightweight, durability and aesthetic design.
Product Description
DongGuan TongToo Aluminum Products Co., Ltd. is a company specializing in aluminum alloy CNC precision machining, injection molding, mold development, and metal parts manufacturing. It has obtained ISO 9001 international certification and strictly implements the 6S management system. With the introduction of German imported equipment, its products are exported to more than 20 countries including Europe, America, and Southeast Asia, with an average annual delivery volume of more than 5 million pieces. With exquisite craftsmanship, fast response, and full-process quality inspection as the core, we provide customized ODM/OEM solutions for global customers and strive to become a trusted strategic partner in the field of international industrial manufacturing.
1.Product Introduction
Dongguan TongToo Aluminum Products Co., Ltd. is a leading manufacturer specializing in aluminum alloy CNC processing and anodizing technology. We are committed to providing high-precision, high-reliability customized aluminum alloy instrument panel solutions for global customers. With advanced four-axis and five-axis CNC equipment, mature surface treatment technology and strict quality management system, our products are widely used in the fields of automobiles, aerospace, industrial equipment and smart homes, meeting customers' diverse needs for lightweight, durability and aesthetic design.
2.Product Parameter
| Product Name | High Quality Aluminum Alloy Dashboard Frame |
| Product Material | 6061, 6063, etc. |
| Product Specifications | Support non-standard customization |
| Product Processing Method | CNC Processing |
| Surface Treatment | Anodizing, sandblasting, powder coating, etc. |
3.Product Feature And Application
Precision CNC Processing
Four-axis and five-axis linkage CNC processing accuracy reaches ±0.01mm, supporting complex curved surfaces, multi-hole positions and thin-walled structure design to ensure that the instrument panel is perfectly adapted to the terminal equipment.
High-strength and lightweight material
Using aviation-grade aluminum alloys such as 6061-T6 and 7075-T651, the weight is 50% lighter than traditional steel, and the static load-bearing capacity is more than 150kg, taking into account both strength and portability.
Multi-functional anodizing treatment
Provide matte, glossy, and colored (black/gray/gold, etc.) anodizing processes, film thickness 10-25μm, hardness HV400+, corrosion resistance through 1000 hours of salt spray test, optional anti-glare and anti-fingerprint coating.
Anti-interference and weather resistance
Through EMI/RFID shielding design (optional), it can adapt to high electromagnetic environments; it can withstand temperatures ranging from -40℃ to 200℃, is moisture-proof and shock-proof, and is suitable for extreme working conditions.
4. Application scenarios of aluminum alloy instrument panel frame
1. Automobiles and new energy vehicles

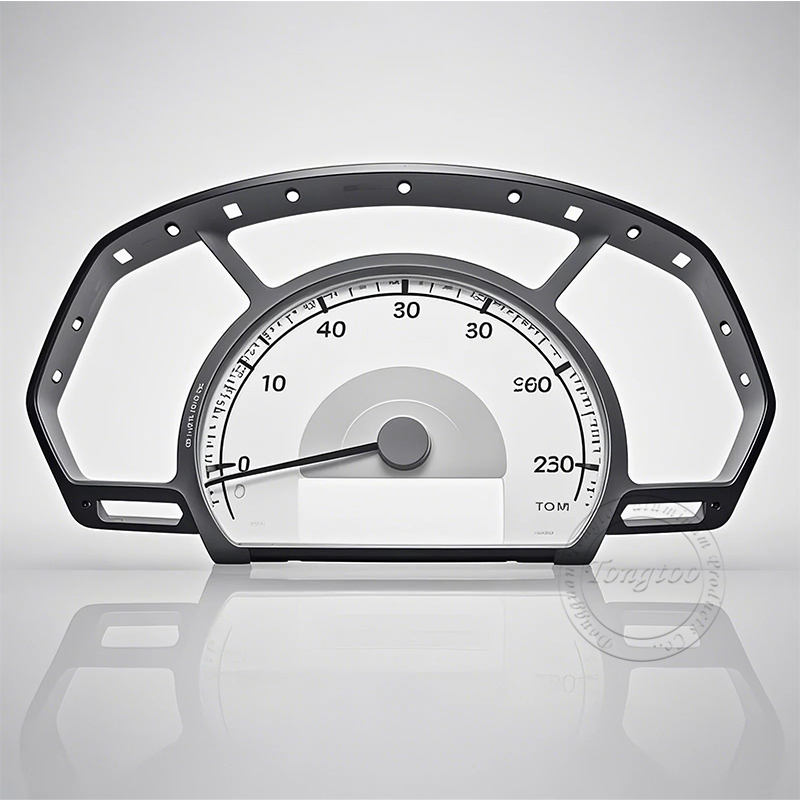

Central control instrument panel: integrated touch screen installation position, EMI shielding to ensure signal stability.
In-vehicle HUD bracket: high-precision curved surface processing, adapted to optical projection requirements.
2. Aerospace
Aircraft cockpit instrument panel: withstand sudden changes in air pressure and high-frequency vibration.
Satellite equipment control panel: ultra-lightweight design, thermal conductivity optimizes heat dissipation efficiency.
3. Industrial and medical equipment
CNC machine tool operation panel: anti-oil coating, wear and impact resistance.
Medical monitor housing: antibacterial anodizing.
4. Smart home and consumer electronics
High-end audio control panel: matte texture + laser LOGO engraving, improve product grade.
Smart home center console: multi-touch integrated holes, support personalized UI layout.
5.Product Details
Material: 6061-T6, 7075-T651, 5052-H32
Processing accuracy: ±0.01mm (CNC), aperture tolerance ±0.02mm
Surface treatment: anodizing (optional colors), sandblasting, laser engraving, conductive oxidation
Thickness range: 1.5mm-15mm (supports ultra-thin hollow structure)
Environmental adaptability: IP65 protection level (optional), UV resistance, chemical corrosion resistance ≤95%
6.Product Qualification
Raw material traceability: material certification is provided for each batch of aluminum.
Final inspection items: full-size inspection by secondary dimension measurement.
Salt spray test (aviation grade ≥1000 hours without corrosion).
Ensure compliance with ISO 9001 standards.
Surface treatment: Meet RoHS pollution-free standards.
7.Deliver, Shipping and Serving
Packing solution: Pearl cotton + carton/wooden box.
 |
 |
8.FAQ
Q: Can the integrated processing of large-size curved dashboards be achieved?
A: Support! The maximum processing size of the five-axis CNC is 1200mm×800mm, the surface accuracy is ±0.03mm, and the screen or button components are seamlessly connected.
Q: Is the anodized color easy to fade?
A: Using closed coloring process, the color difference ΔE is less than 1.5 after 1000 hours of ultraviolet irradiation, ensuring long-term stability.
Q: How to ensure the accuracy of multi-hole assembly?
A: Using high-precision fixtures and online detection systems, the hole position error is ≤0.05mm, and a test report is provided.
Q: Does it support conductive oxidation treatment?
A: Yes! The conductive oxide film layer resistance is less than 0.1Ω/cm², which is suitable for scenarios requiring electromagnetic shielding or grounding.
Q: Is the price of small batch orders competitive?
A: We use standardized process modules and flexible production lines to reduce the cost of small batch production and provide customers with cost-effective solutions.
Company Introduction
Our 5000㎡ workshop is equipped with hundreds of production equipment, including German Hammer five-axis CNC machining center (machining accuracy up to 0.002 MM), turning and milling composite CNC lathe, CNC lathe, milling machine, lathe, grinder, etc.; as well as more than a dozen various inspection equipment (including German Cai's three-dimensional, with inspection accuracy up to 0.001MM), and the machining capacity has reached the international advanced level. The Tengtu team has the most professional mold design and CNC machining knowledge. We will work closely with you during the prototyping, production, assembly, inspection, packaging and final delivery process to exceed your expectations.
Our team uses CNC machining to manufacture high-performance parts that support industries such as aerospace, automotive, military, medical, machinery, electronics, and communications. We are committed to innovation and manufacture and assemble important components with excellent precision, strict tolerances and high-quality materials. Over the past 11 years, Tengtu has established a high reputation for efficiency, quality, reliability and on-time delivery.
