Product Introduction

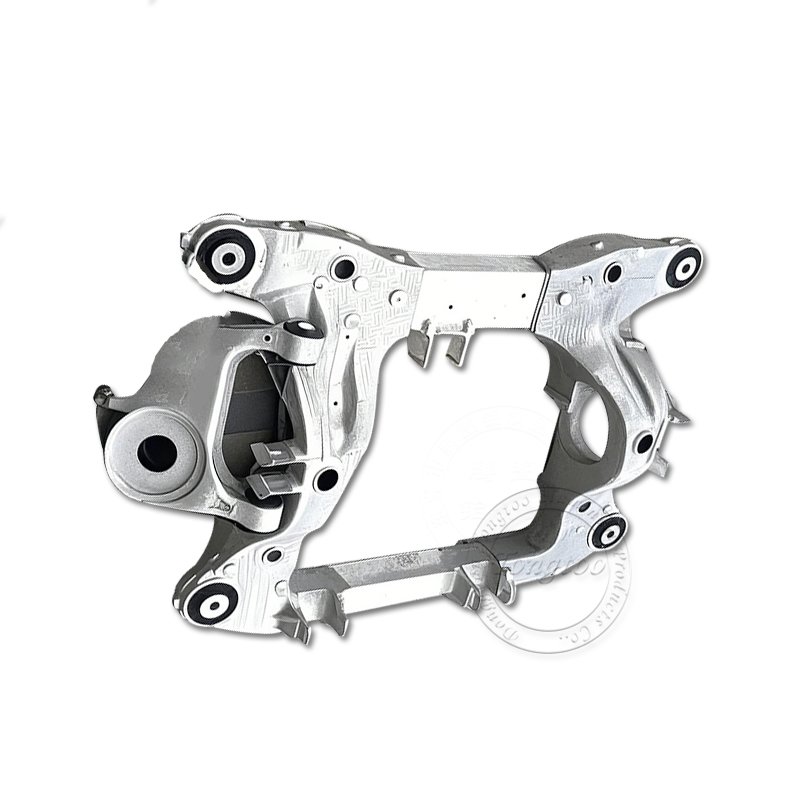

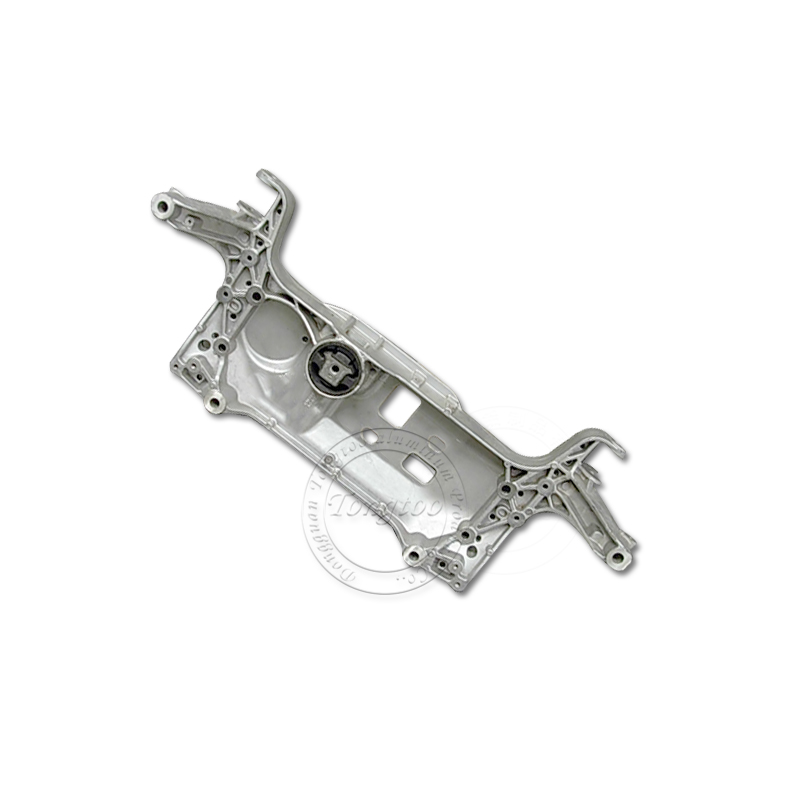

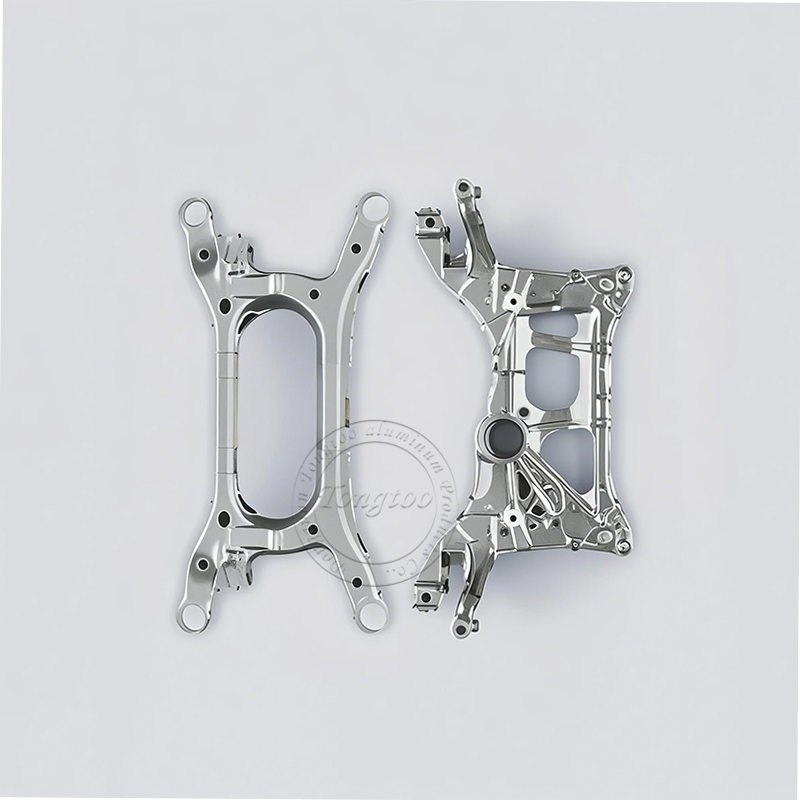

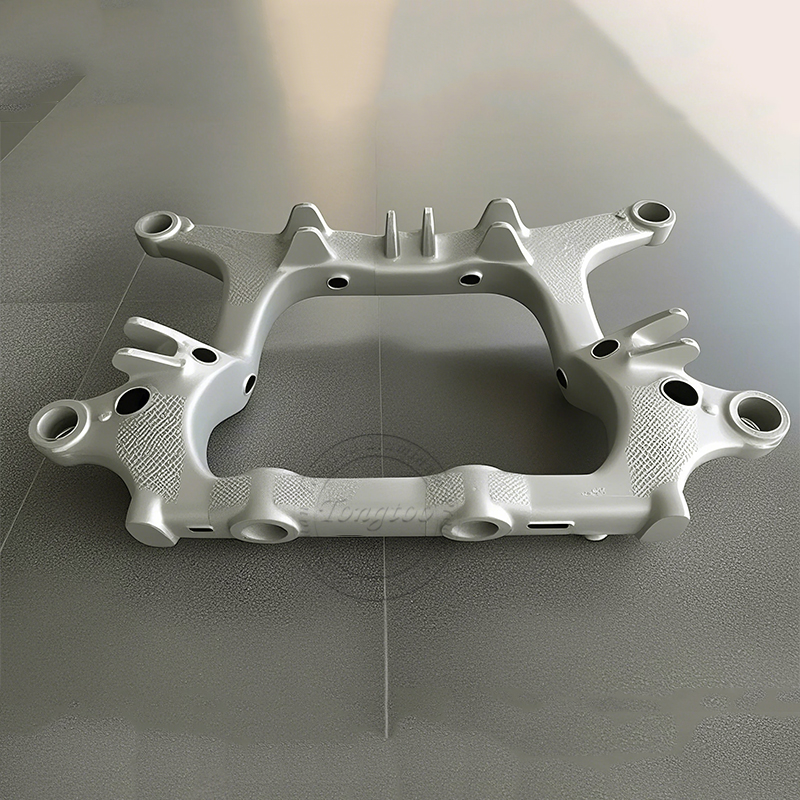

Die-cast custom automotive aluminum alloy subframe is a key chassis component specially designed for the lightweight and high-performance requirements of modern automobiles. Manufactured by high-pressure casting (HPDC) process and high-strength aluminum alloy materials, the product significantly reduces the overall vehicle weight while ensuring structural strength, and is suitable for fields such as new energy vehicles, passenger cars, commercial vehicles and special vehicles. Support full-process customized services to meet customers' personalized demands for size, structure, interfaces and performance, and help enhance vehicle range, handling and safety.

Product Parameter

Product Name: Automotive Aluminum alloy Subframe

The product material is A380/ADC12, etc

Product specifications support non-standard customization

Product processing method: Mold design + precision die-casting molding

Surface treatment: anodizing, powder coating, electrophoresis, etc. (optional)

Product Feature And Application

Lightweight design

Compared with traditional steel subframes, it reduces weight by 40% to 50%, effectively improving fuel efficiency or the driving range of electric vehicles.

Lightweight design reduces unsprung mass, optimizing suspension response and vehicle handling.

High-precision one-piece molding

The high-pressure die-casting process enables the one-time formation of complex structures, reduces welding points, and enhances overall rigidity and stability.

The dimensional accuracy reaches ±0.1mm, ensuring seamless compatibility with the chassis system.

Outstanding material performance

It is made of A380/ADC12 aluminum alloy, with tensile strength ≥320MPa, yield strength ≥160MPa, and elongation ≥3%.

It has excellent corrosion resistance and is suitable for harsh environments such as humidity and salt spray.

Structural optimization and safety

Based on CAE simulation and topological optimization design, the layout of reinforcing ribs at key parts has increased the collision energy absorption efficiency by 30%.

It has passed 200,000 fatigue tests and frontal/side impact verification, and complies with international safety standards such as ECE R94.

Environmental protection and recyclability

Aluminum alloy materials are 100% recyclable, and the recycling rate of production waste exceeds 90%, which is in line with the carbon neutrality goal.

Full-dimensional customized services

Supports customization in terms of size, shape, installation hole positions, sensor integration, etc., and is compatible with multiple platforms including fuel, electric and hybrid.

15-day rapid mold opening, full-cycle technical support from small-batch trial production to mass production.

Application scenarios

New energy vehicles: Reduce the weight burden of battery packs and extend the driving range (such as pure electric/hybrid models).

High-end passenger vehicles: Enhance handling and NVH performance (such as sports coupes, luxury SUVs).

Commercial vehicles: Lightweighting reduces fuel consumption under load and extends the lifespan of components (logistics vehicles, light trucks).

Special vehicles: Customized design to meet the special needs of fire engines, unmanned driving chassis, etc.

Modification market: Offering high-performance lightweight upgrade solutions (daily track vehicles, off-road modifications).

Product Details

Material parameters

Material: A380/ADC12 (Other custom alloys are optional)

Density: 2.7g/cm³, tensile strength ≥320MPa, hardness (HB) ≥85.

Process standard

Mold: H13 steel mold, CNC precision processing, intelligent mold temperature control.

Die-casting machine: Imported equipment with a capacity of over 2000T, pressure ≥80MPa, vacuum-assisted to reduce porosity.

Post-treatment: T6 heat treatment, sandblasting/anodizing /Powder coating surface treatment is optional.

Adapt to scenarios

Vehicle types: sedans, SUVs, MPVS, light commercial vehicles, special engineering vehicles.

Drive form: Front-wheel drive/rear-wheel drive/all-wheel drive, compatible with MacPherson, multi-link and other suspension systems.

Product Qualification

Raw material traceability: Material certificates are provided for each batch of aluminum materials.

Final inspection item: Two-dimensional measurement and full-size inspection.

Ensure compliance with ISO 9001 standards.

Surface treatment: Complies with RoHS pollution-free standards.

Deliver,Shipping And Serving

Packaging solution: Pearl cotton + waterproof wooden box.

FAQ

Q1: What is the delivery cycle for custom subframes?

Standard parts take 30 days, and custom parts take 45 to 60 days (including mold development).

Q2: How to ensure the strength consistency of die-castings?

A real-time pressure monitoring system is adopted, and mechanical property test reports and test results are provided for each batch.

Q3: Is it supported to integrate other functional components?

It can pre-embed threaded sleeves, sensor brackets, wire harness fixing slots, etc., to achieve modular assembly.

Q4: Is the product suitable for extremely cold/high-temperature environments?

Performance has not declined after passing environmental simulation tests ranging from -40°C to 120°C.

Q5: What is the minimum order quantity (MOQ)?

Support small-batch trial production (minimum 50 pieces), and enjoy gradient discounts for mass production orders of over 500 pieces.
