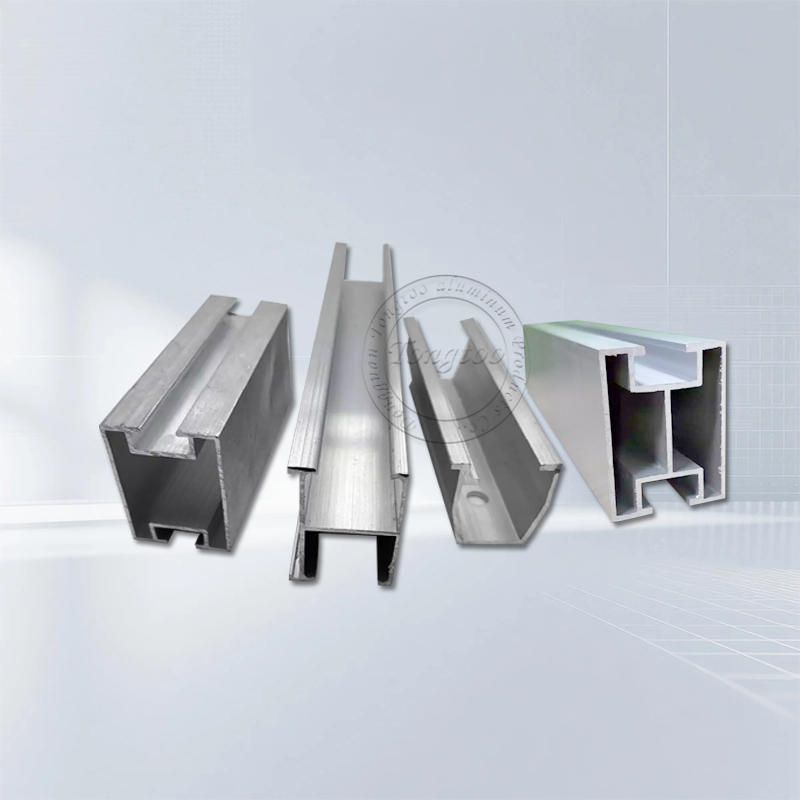

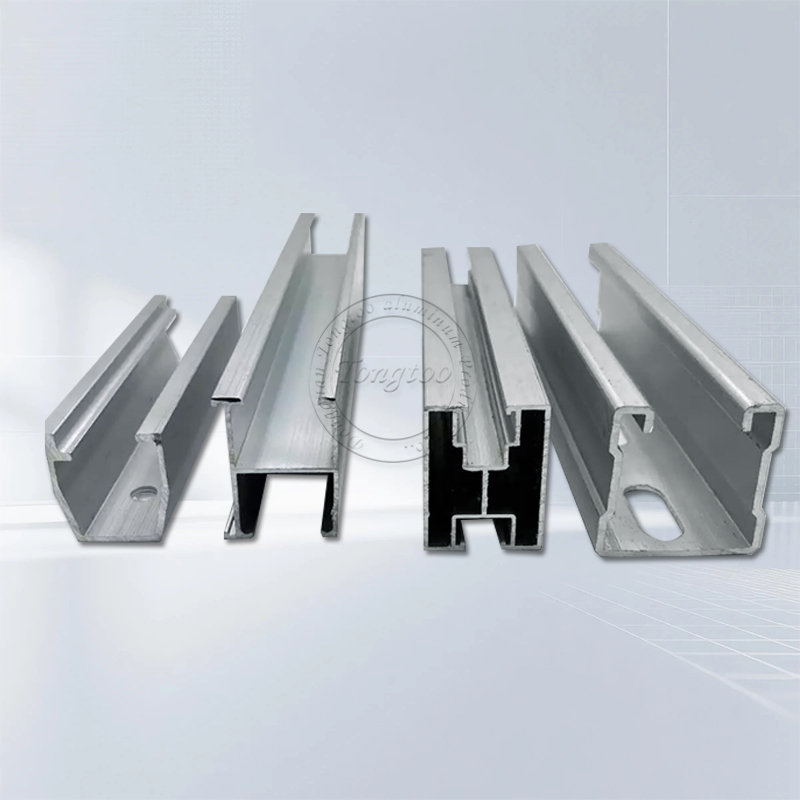

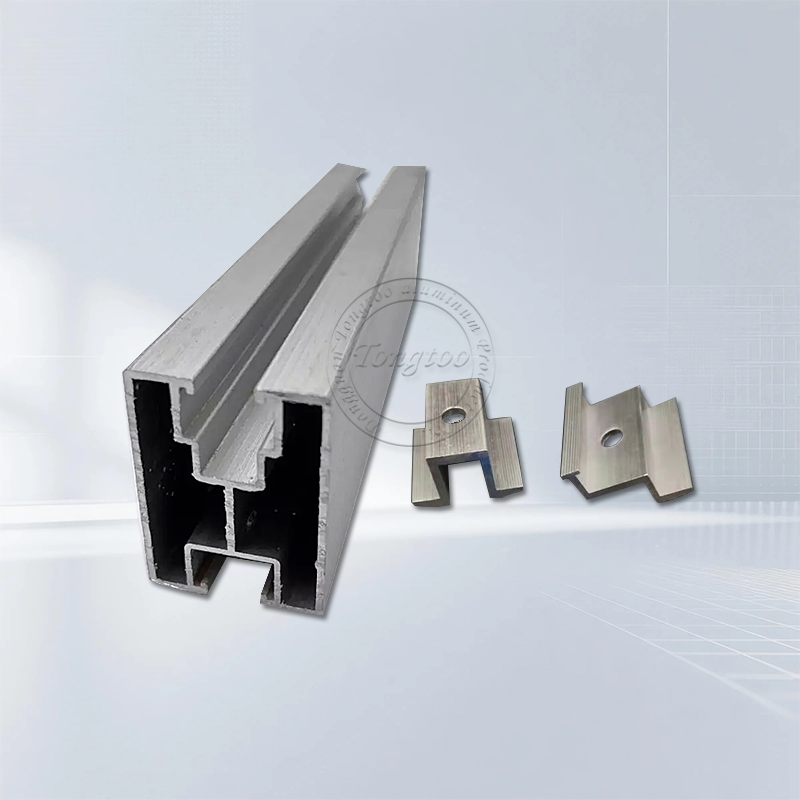

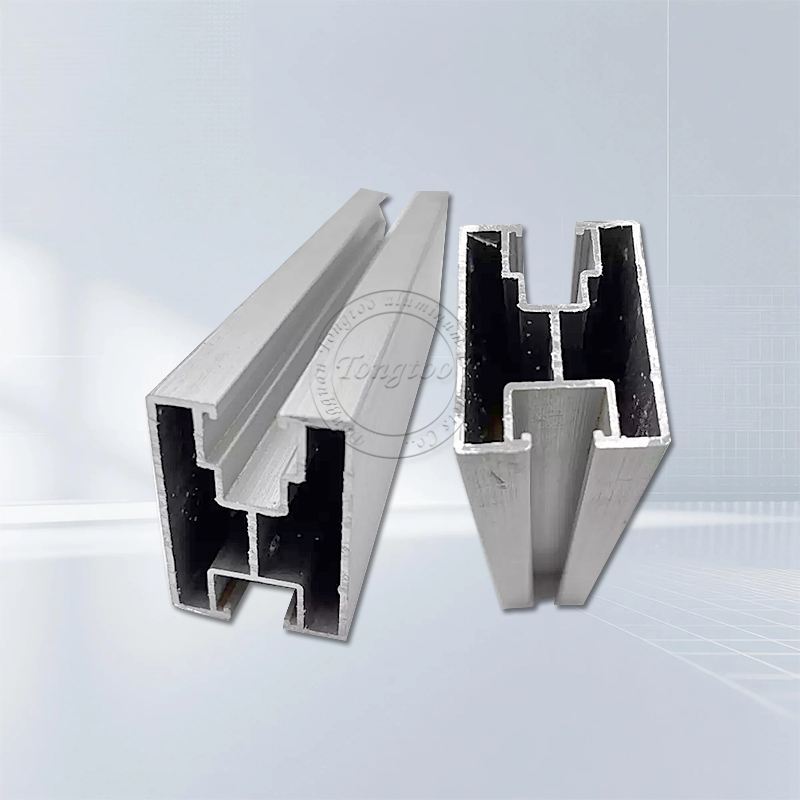

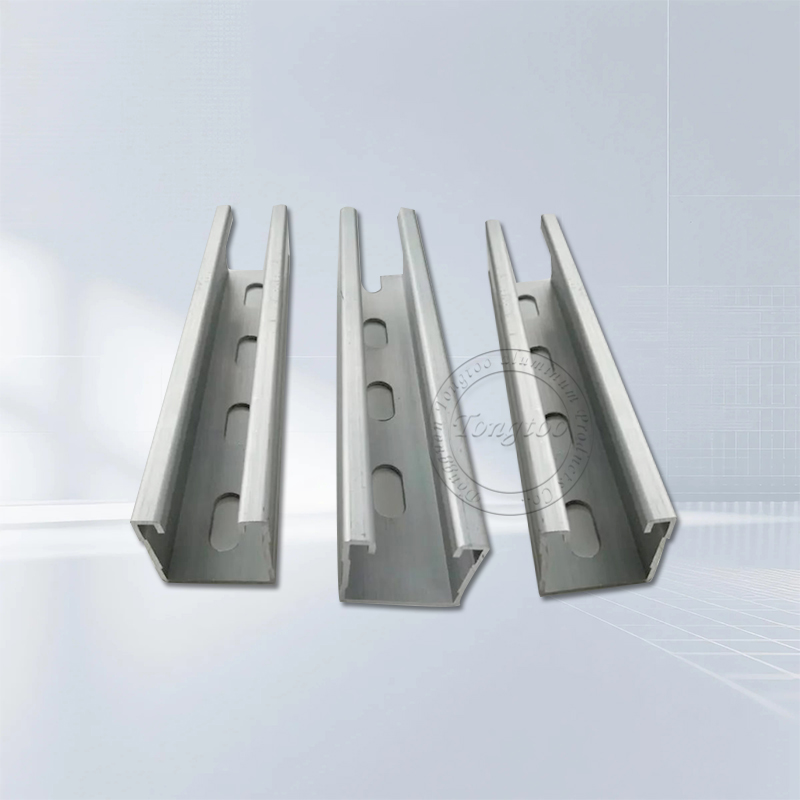

Customized Solar Photovoltaic Bracket Aluminum Profile
Designed for complex scenes such as distributed photovoltaic power stations, industrial and commercial roofs, mountain/fishery photovoltaic complementarity, etc., it provides lightweight bracket solutions that are wind-resistant, corrosion-resistant, and zero-adaptation.
Product Description
DongGuan TongToo Aluminum Products Co., Ltd. is a company specializing in aluminum alloy CNC precision machining, injection molding, mold development, and metal parts manufacturing. It has obtained ISO 9001 international certification and strictly implements the 6S management system. With the introduction of German imported equipment, its products are exported to more than 20 countries including Europe, America, and Southeast Asia, with an average annual delivery volume of more than 5 million pieces. With exquisite craftsmanship, fast response, and full-process quality inspection as the core, we provide customized ODM/OEM solutions for global customers and strive to become a trusted strategic partner in the field of international industrial manufacturing.
Product Introduction
Designed for complex scenes such as distributed photovoltaic power stations, industrial and commercial roofs, mountain/fishery photovoltaic complementarity, etc., it provides lightweight bracket solutions that are wind-resistant, corrosion-resistant, and zero-adaptation.
Product Parameter
Product Name Aluminum Alloy Solar Photovoltaic Bracket
Product Material 6005A-T6
Processing Technology: Die Extrusion + CNC Processing
Surface Treatment: Anodizing
Product Features: Supports personalized opening, size, and LOGO customization
Product Feature And Application
Core Advantages and Features
The lightweight and high-strength structure adopts EN AW-6005A-T6 aviation-grade aluminum alloy, with a yield strength of >215MPa, which is 40% lighter than steel structure, reduces roof load, and simplifies the installation process.
C5 grade anti-corrosion performance
Surface anodizing + AZ/NZ coating (in accordance with IS012944 standard),
Salt spray test >3000 hours. Adapt to high-corrosion environments such as coastal/industrial areas.
Application scenarios:
Distributed power stations
Industrial and commercial roofs
Household photovoltaics
Large ground power stations
Mountain photovoltaics
Fishing and photovoltaic complementarity
Special scenarios
BIPV building integration
Agricultural photovoltaic greenhouses
Product Details
Material standards: Adopt EN AW-6005A-T6 aviation-grade aluminum alloy
Mechanical properties: tensile strength: ≥260 MPa
Elongation: ≥10%
Webster hardness: ≥15HW
Sectional accuracy:
Dimensional tolerance: ±0.15mm (in line with GB/T 14846)
Straightness: ≤0.3mm/m
Surface treatment:
Anodizing (silver gray/black): film thickness 12-25um, hardness ≥300HV
Powder spraying: thickness 68-120um, adhesion level 0 (ASTMD3359)
Product Qualification
Environmental certification:
RoHS certification (lead-free, cadmium-free and other hazardous substances)
REACH (EU Chemical Safety Standard)
Quality management system:
ISO 9001:2016/ISO 9001:2015 (production process quality control)
Deliver, Shipping And Serving
Professional ODM & OEM manufacturer, with more than 20 years of precision processing experience, based on customer needs, providing a full range of customized services.
Packaging method: Pearl cotton, other packaging methods can be customized
Packing solution: pearl cotton + carton/wooden box.
|
|
|
FAQ
Q1: How to solve the high salt spray corrosion problem of coastal projects?
Answer: Triple protection system:
Substrate: 6005-T6 aluminum alloy (copper content ≤0.1%);
Coating: Micro-Arc Oxidation+fluorocarbon spraying, C5-M grade anti-corrosion (ISO 9227);
Connectors: 316L stainless steel bolts + insulating gaskets to prevent electrochemical corrosion.
Q2: Minimum order quantity (MOQ) and delivery cycle?
MOQ: 3 tons (about 1MW bracket usage)
Delivery time: 15 days
Q3: Can complex sections (such as hidden cable ducts) be achieved?
Answer: Yes! Through precision die extrusion technology:
Minimum inner cavity size: 4mm×6mm (wire slot channel)
Multi-cavity structure is formed in one step to avoid welding weak areas
Company Introduction
Our 5000㎡ workshop is equipped with hundreds of production equipment, including German Hammer five-axis CNC machining center (machining accuracy up to 0.002 MM), turning and milling composite CNC lathe, CNC lathe, milling machine, lathe, grinder, etc.; as well as more than a dozen various inspection equipment (including German Cai's three-dimensional, with inspection accuracy up to 0.001MM), and the machining capacity has reached the international advanced level. The Tengtu team has the most professional mold design and CNC machining knowledge. We will work closely with you during the prototyping, production, assembly, inspection, packaging and final delivery process to exceed your expectations.
Our team uses CNC machining to manufacture high-performance parts that support industries such as aerospace, automotive, military, medical, machinery, electronics, and communications. We are committed to innovation and manufacture and assemble important components with excellent precision, strict tolerances and high-quality materials. Over the past 11 years, Tengtu has established a high reputation for efficiency, quality, reliability and on-time delivery.
