Product Introduction

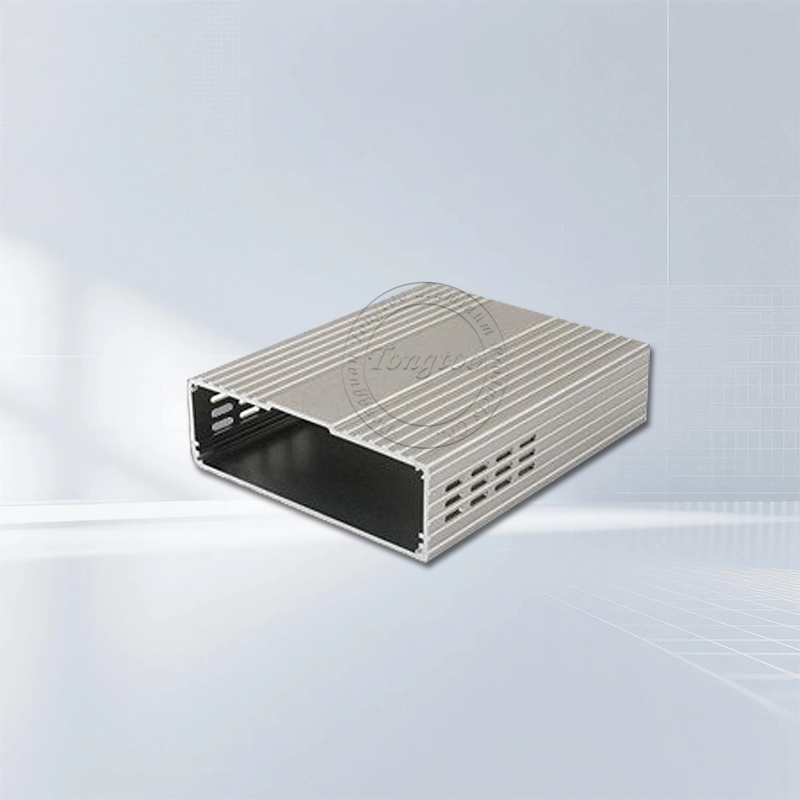

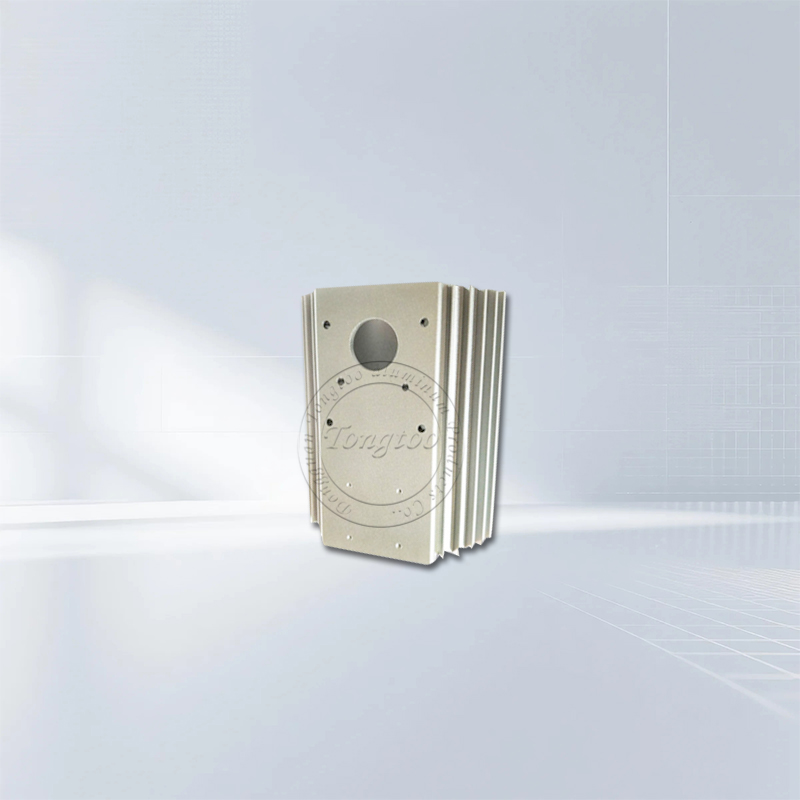

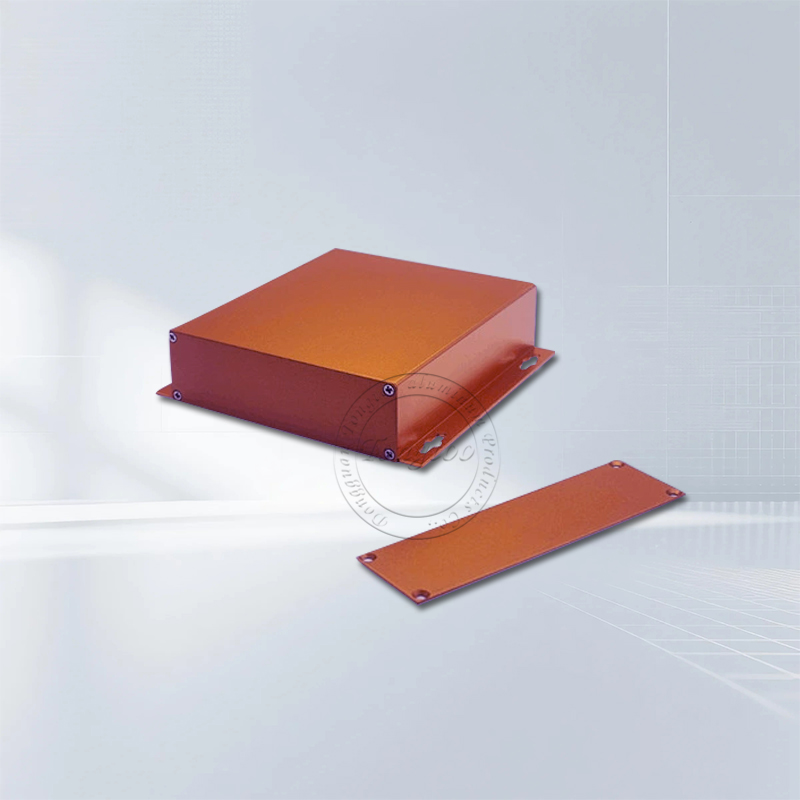

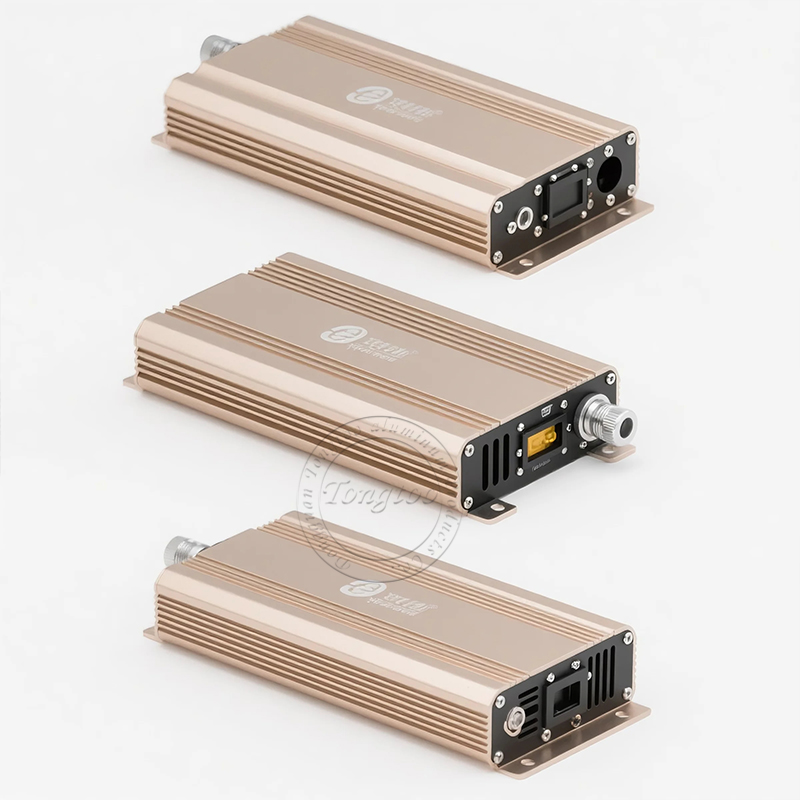

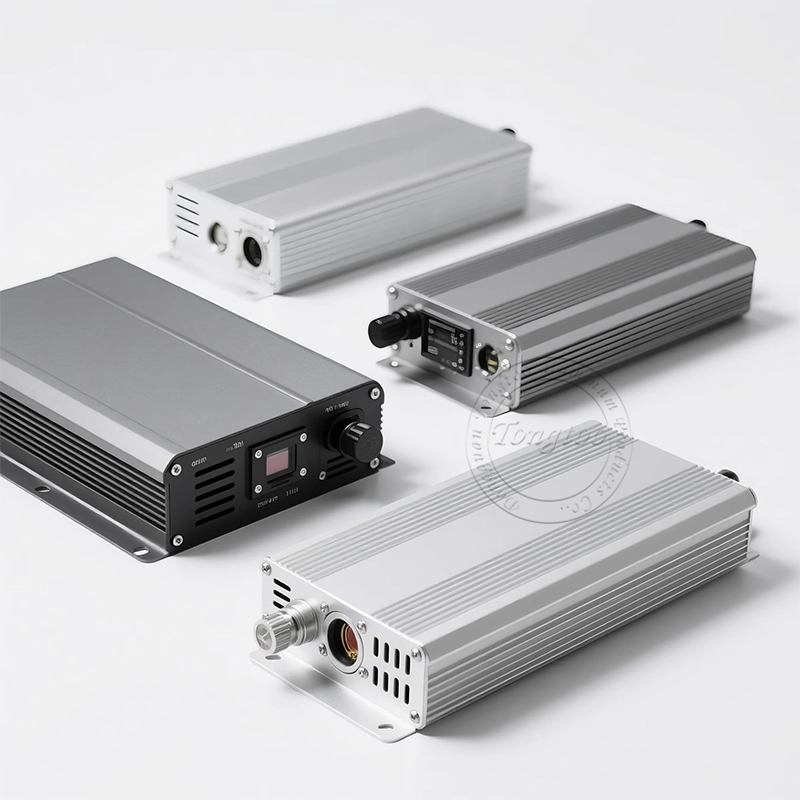

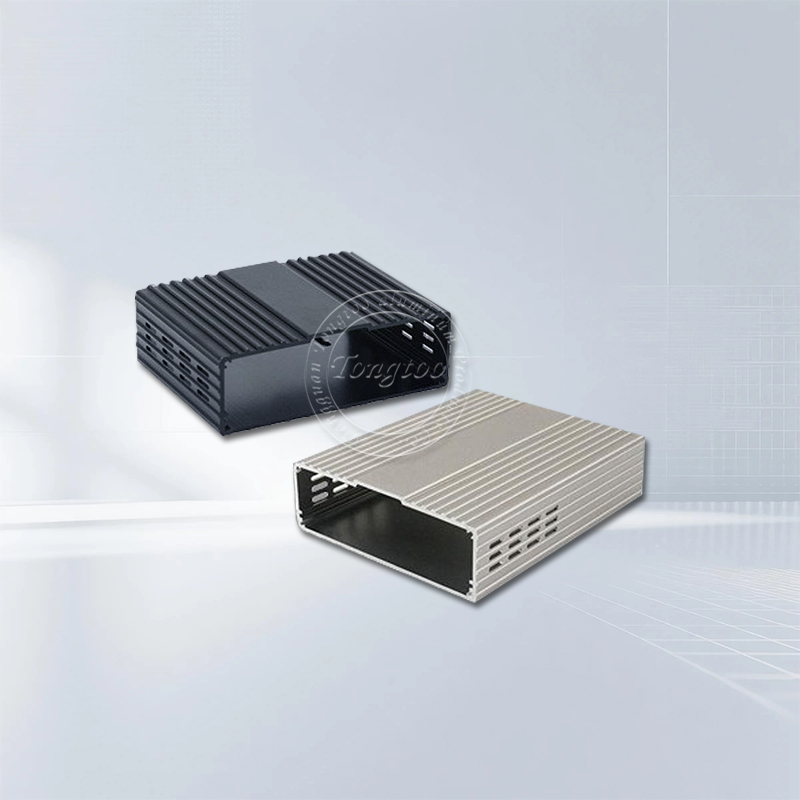

The aluminum alloy inverter housing is made of 6063-T6 aluminum alloy profile, with a one-piece base structure formed by a customized extrusion die, and is precisely carved by a five-axis CNC machining center. It is specially designed for photovoltaic/energy storage inverters. It integrates the structural integrity of the extrusion process with the CNC micron-level tolerance control to achieve a three-in-one solution of IP66 protection, efficient heat dissipation, and electromagnetic shielding. It is suitable for new energy scenarios such as household energy storage, industrial and commercial photovoltaics.

Product Parameter

Product Name Aluminum Alloy Inverter Housing

Product Material 6061/6063

Processing Technology: Open Die Extrusion/CNC Processing

Surface Treatment: Anodizing/Hard Oxidation/Laser Engraving

Product Features: Supports all-round precision customization of size, wall thickness, internal structure, panel layout, interface type, surface treatment, special certification (such as fire protection), etc.

Product Feature And Application

1. Extrusion structure innovation (core technology of mold)

Multi-chamber flow channel design: integrated extrusion circuit cabin/heat dissipation cabin (isolation protection)

Topology optimization reinforcement ribs: torsional rigidity increased by 150% (EN 60068-2-6 certification)

Precise wall thickness control: ±0.1mm (mold precision polishing)

2. Thermal management revolution (CNC synergy)

3D curved heat dissipation teeth: extrusion matrix thermal conductivity ＞215W/m·K

CNC milling temperature plate: IGBT mounting surface flatness ≤0.05mm

Liquid cooling quick-connect interface: positioning accuracy ±0.03mm.

Precision size and interface (CNC core value):

CNC machining center ensures that the size and position accuracy of all mounting holes (threaded holes, light holes), panel openings (displays, buttons, interfaces), guide rail slots, etc. reach ±0.05mm or even higher.

Meet the strict assembly tolerance requirements of precision electronic components to ensure convenient and reliable equipment installation.

Supports the processing of complex special-shaped structures and fine features to achieve high customization.

Application scenarios:

Household photovoltaic storage system

Balcony micro inverter (ultra-thin extrusion wall thickness 1.5mm)

Residential energy storage integrated machine (IP66 outdoor protection)

Commercial and industrial power station

String inverter (dust-proof heat dissipation tooth array)

Container energy storage (seismic reinforced structure)

New energy vehicles

On-board charger (lightweight extrusion frame)

Charging pile power module (liquid cooling integrated solution)

Field

Marine inverter power supply (C5-M anti-salt spray treatment)

Highland inverter (ultraviolet enhanced coating)

Product Details

Excellent weather resistance and surface treatment:

Aluminum alloy substrate is naturally corrosion-resistant, and the surface can be anodized (commonly used natural color, black, other colors), sandblasted oxidation, sprayed, etc.

The surface treatment is not only beautiful, but also greatly enhances the wear resistance, corrosion resistance, and UV resistance, extending the service life of the shell.

Flexible customization capability (core advantage of extrusion + CNC):

Extrusion die development: Extrusion dies with specific cross-sectional shapes can be developed according to demand to meet the needs of different sizes and internal structures (such as reinforcing ribs), and achieve cost-effective optimization from small batch to large batch production.

CNC programming flexibility: CNC processing has extremely high flexibility. By modifying the program, it can quickly adapt to the production of customized shells with different sizes, opening layouts, and interface requirements, responding to the diverse needs of customers.

Product Qualification

Environmental certification:

RoHS certification (lead-free, cadmium-free and other hazardous substances)

REACH (EU Chemical Safety Standard)

Quality Management System:

ISO 9001:2016/ISO 9001:2015 (production process quality control)

Deliver, Shipping And Serving

Professional ODM&OEM manufacturer, with more than 20 years of precision processing experience, based on customer needs, providing a full range of customized services.

Standard packaging: copy paper + carton

Customized packaging: blister tray/PEP + wooden box

Packing solution: pearl cotton + carton/wooden box.

FAQ

Q: What is the difference between extrusion and die casting of aluminum alloy shells? Which one is more suitable?

A: Extrusion is suitable for producing profiles with constant cross-sectional shape and long length. It has the characteristics of high structural strength, good material density, excellent surface quality, and relatively low mold cost (especially when the cross-section is simple), which is very suitable for box-type structures.

Die casting is more suitable for mass production of complex three-dimensional shapes and thin-walled parts, but there may be pores and the strength is slightly inferior to extrusion parts (same material).

For signal box shells that require high structural strength, good heat dissipation teeth, and high protection sealing surfaces, extrusion molding combined with CNC finishing is usually the better choice.

Q: How to control extrusion deformation of large-size shells?

A: Triple process closed loop

Gradient quenching technology: online temperature control grain refinement

Stress aging: 72 hours constant temperature shaping

Multi-point positioning milling: CNC sequence release of internal stress

Q: Mold development cycle and cost?

A: Intelligent mold system

Cycle: 12-18 days (complex section)

Cost: ￥2000-60,000 (depending on the complexity of the section)

Life: 300,000 meters↑ (mold steel 1.2344)
